韩国HQ电动执行机构
发布时间: 2018-06-08 11:15
|

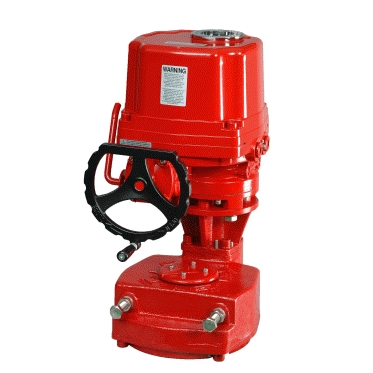

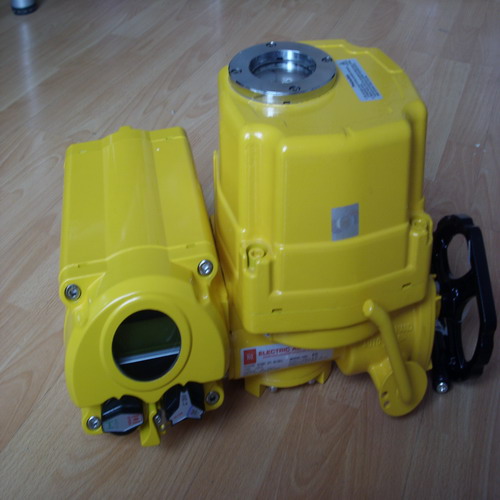

DESCRITION - HQ series electric actuator is specially designed for quarter turn operating applications such as Ball,
Butterfly, Plug valves, Dampers and similar usages.
- It's variation in wide range of output torque control options fit your specific requirement.
- HQ series electric actuator provides high reliability and performance for your automation plan.
- Compact and low weight due to high grade aluminum alloy for housing.
- High corrosion resistance due to hard anodizing on inside & outside and
polyester coating on external surface.
- Various output torque from 80Nm to 3000Nm.
- Wide range of voltage available
- Self locking with minimum backlash in the transmission
- Rugged construction with o-ring system giving water and explosionproof.
(optional : explosionproof/Exd IIB T4, IP68)
- Handwheel for manual operation engaged by a manual/auto lever arranged for power preference
- Easy mounting base standard to ISO5211
- Standard 4 limit switches. 2 for operation, 2 for extra (dry contacts)
- Torque switches (except for HQ-008)
- LED lamps on indicator monitoring valve position and operation (option)
- Space heater with thermostat for preventing overheat
- Removable drive bushing with under hung for easy machining and tight connection.
FEATURES
 |
